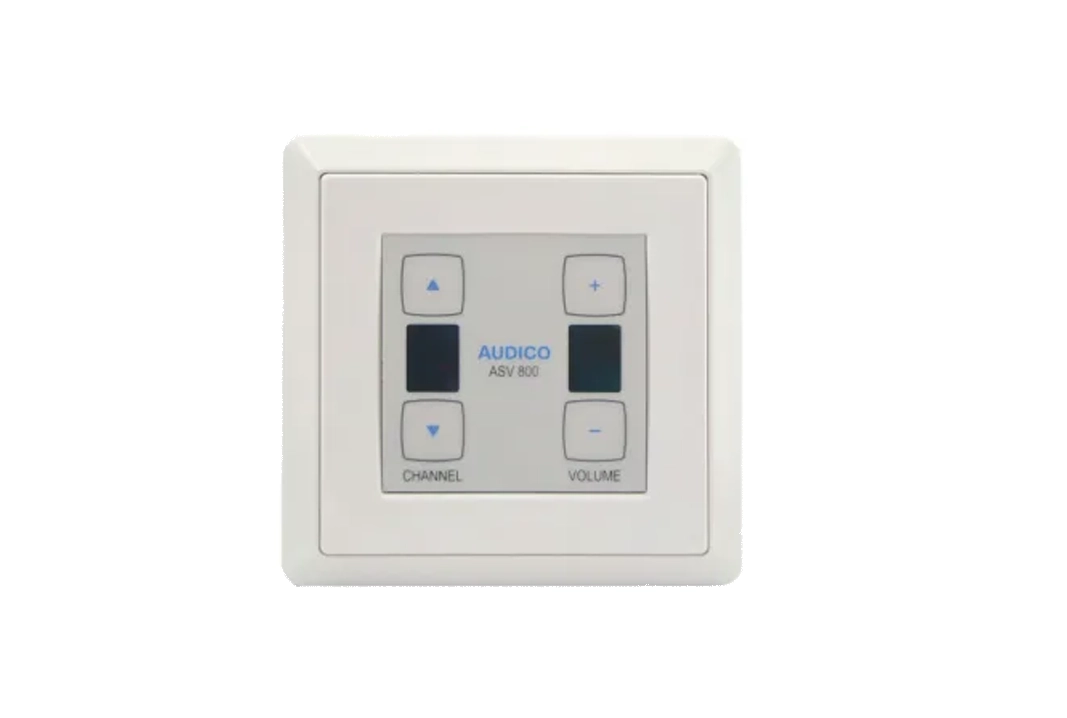

ASV 800 Program Source / Remote Level Control Device is a wall-mounted user panel for the Audico AVEC sound system. Installed in the listening area, it lets the user select the wanted program source and adjust its volume locally, without access to the central equipment.

Ready to specify AVEC G4 for your project?

Contact us

Industry use

Restaurants, shops, offices, schools, hotels and public spaces where users select the program and adjust the volume locally.

Flexible system architecture

Connects to the ADA 8x8 Local or System Bus with CAT 5/6/7 cable and is powered over the bus. Up to 32 panels per bus, each with its own DIP-switch address.

Simple to use

CHANNEL and VOLUME buttons with two 7-segment displays. Up to seven programs and 20 volume steps, defined with Aveclizer.

Program selection and volume adjustment

The program is selected with the CHANNEL buttons. If the displays are blank, the first press shows the current program number, and the following presses step the program number up or down. The volume of the selected program group is adjusted with the VOLUME buttons in 20 steps.

The displays also show status and fault indications, such as an unrecognised address or a communication failure. The panel returns to stand-by a moment after the last key press.

ASV 800 Program Source / Remote Level Control Device
ASV 800 Program Source / Remote Level Control Device

Typical applications

  • Local program and volume control in rooms and zones of a PA/BGM system
  • Restaurants, shops, offices, schools, hotels and public spaces
  • User panel for AVEC voice evacuation and PA systems

System capabilities at a glance

ASV 800 Program Source / Remote Level Control Device

Main Features

  • Program source selection, up to 7 programs
  • Volume adjustment in 20 steps
  • Two 7-segment displays for program and volume
  • Status and fault indication on the displays
  • Automatic stand-by after the last key press
  • Connects to the ADA 8x8 Local or System Bus with CAT 5/6/7 cable
  • Powered from the ADA 8x8 System Unit via the bus
  • Bus address 1…32, set with DIP switches
  • Configured with Aveclizer software
  • Fits a Finnish standard-size wall box, 85 × 85 mm
Audico code
N12352
Mechanical & Environmental
EAN code
6430029190064
Mechanical & Environmental
FI e-number
7931106
Mechanical & Environmental
Program selection and volume
Up to 7 programs, volume in 20 steps
Control & Interfaces
Configuration
Aveclizer software
Control & Interfaces
Bus address
1…32, set with DIP switches
Control & Interfaces
Bus connection
ADA 8x8 Local or System Bus, CAT 5/6/7 cable
Control & Interfaces
Power supply
From the ADA 8x8 System Unit via the bus
Power Supply & Consumption
