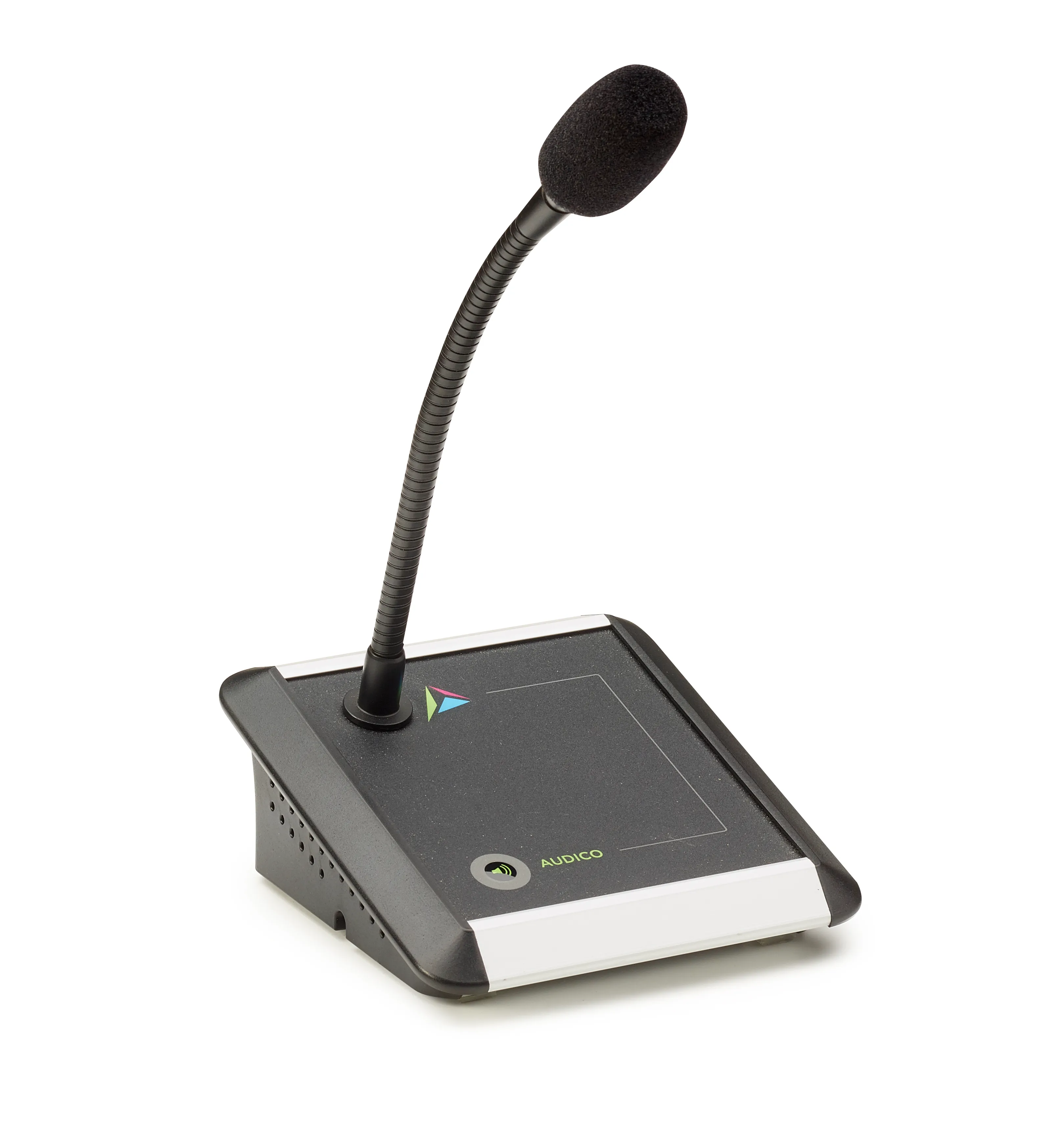

The AAE 801B is a paging console that can be connected to Audico AVEC and AVEC G3 system. It has a goose neck microphone, which allows you to make an announcement/paging for one of the freely defined programmed paging area. Ideal application for the console is a situation where there are many agents of the paging and they change frequently, for example, information desks. There is only one press button, which allows the paging to be activated and terminated. The button action can be chosen from either the PTT (paging is active when the button is pressed) or TOGGLE (at the push of a button to activate, another push to terminate the paging). There are 4 indicator lights around the switch to indicate the status of the device and the operation status.

Ready to specify AVEC G4 for your project?

Product datasheet

AAE 801B Datasheet FI

Download PDF

Industry use

Designed for education, transport, retail, office complexes and marine environments.

Flexible system architecture

Connects directly to ADA 8x8 units via RS-485. Supports scalable, programmable zone-based paging and control.

Certified for compliance and safety

Compliant with AVEC G3 system requirements and EMC regulations.

Single-Zone Paging Unit for AVEC G3 Systems

The console has a connector for the speaker muting in cases where the console is in the immediate vicinity of the loudspeakers, which needs to be muted to avoid acoustical feedback during paging. The console can be placed on a table or embed into the table. In addition, the console can be attached to the wall or into the wall enclosure with the brackets that are supplied as an accessory. The consoles are connected to the Main or Spare bus of the system, or, alternatively, to audio input with dry-contact paging control. The maximum number of devices on the bus is 15, but there is no limit on the number of devices with dry-contact paging control in the system.

‍

System capabilities at a glance

Main Features

- Gooseneck microphone for clear announcements
- Single push button with selectable PTT or TOGGLE operation
- Four LED indicators to show device and paging status
- Speaker muting connector to prevent feedback
- Table-top, embedded or wall-mount installation with brackets
- Connects to Main or Spare bus, or via dry-contact control
- Supports up to 15 consoles on the bus line, unlimited with dry-contact control

‍

Want to learn more?

Our experts are ready to help you design a safe and scalable audio system. Get in touch or Request a quote to discuss your project needs.

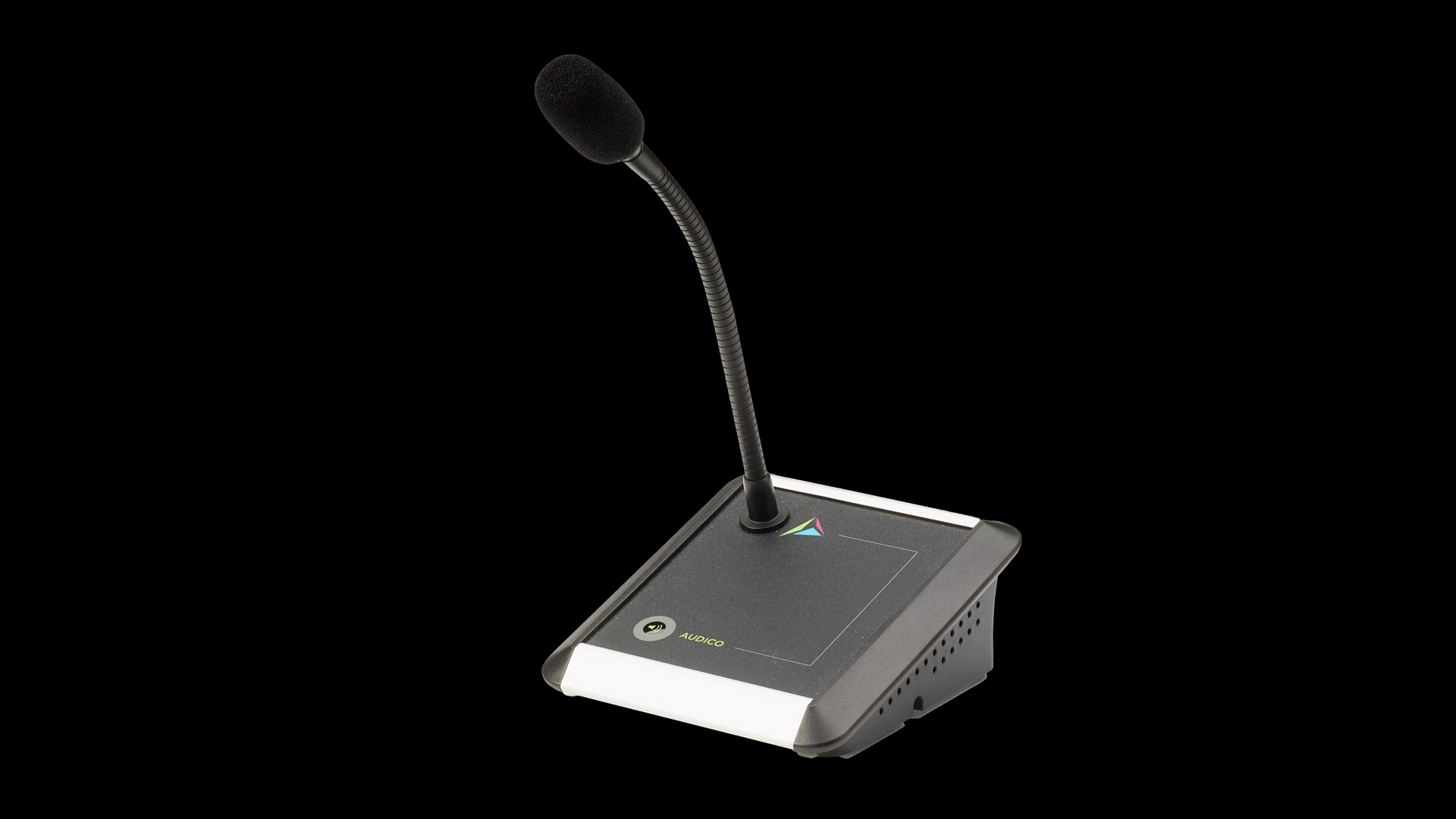

AAE 801B PAGING CONSOLE

User Interface Devices for AVEC G3 Systems
