The ALT 8x8 is a line transfer unit for Audico Avec public address and voice evacuation system. It converts ADA 8x8 central units’ low impedance (8 Ohms) outputs to 70-100V constant voltage lines. The ALT contains 8 separate transformers.

Ready to specify AVEC G4 for your project?

Product datasheet

ALT 8x8 G3 Datasheet

Download PDF

Industry use

Suitable for education, retail, healthcare, transport, industrial, and maritime sectors.

Flexible system architecture

Used in combination with ADA 8x8 G3 System Units as part of a scalable AVEC G3 system. Supports System Bus, Local Bus, or LAN connections. Configuration via web interface and third-party control systems is supported.

Certified for compliance and safety

Certified according to EN 54-16:2008 and EN 60945 standards. Type approval issued by DNV and Bureau Veritas for maritime use.

ALT also delivers the 24VDC priority voltage for attenuators’ bypass relays, use of priority voltage ensures the important message is heard everywhere in spite of the current position of the volume setting. Output lines can be connected parallel to increase the power delivered to a single line.

‍

Typical applications

Educational institutions
Retail environments
Healthcare facilities
Public transportation hubs
Industrial complexes
Maritime vessels

‍

System capabilities at a glance

Main Features

Converts 8 Ohm outputs to 70/100V constant voltage lines
Eight independent transformer channels
Provides 24VDC priority voltage for attenuator bypass
Supports locked group configurations for higher power output
Factory-set to 100V; adjustable to 70V internally
EN 54-16 and EN 60945 certified

‍

Want to learn more?

Our experts are ready to help you design a safe and scalable audio system. Get in touch or Request a quote to discuss your project needs.

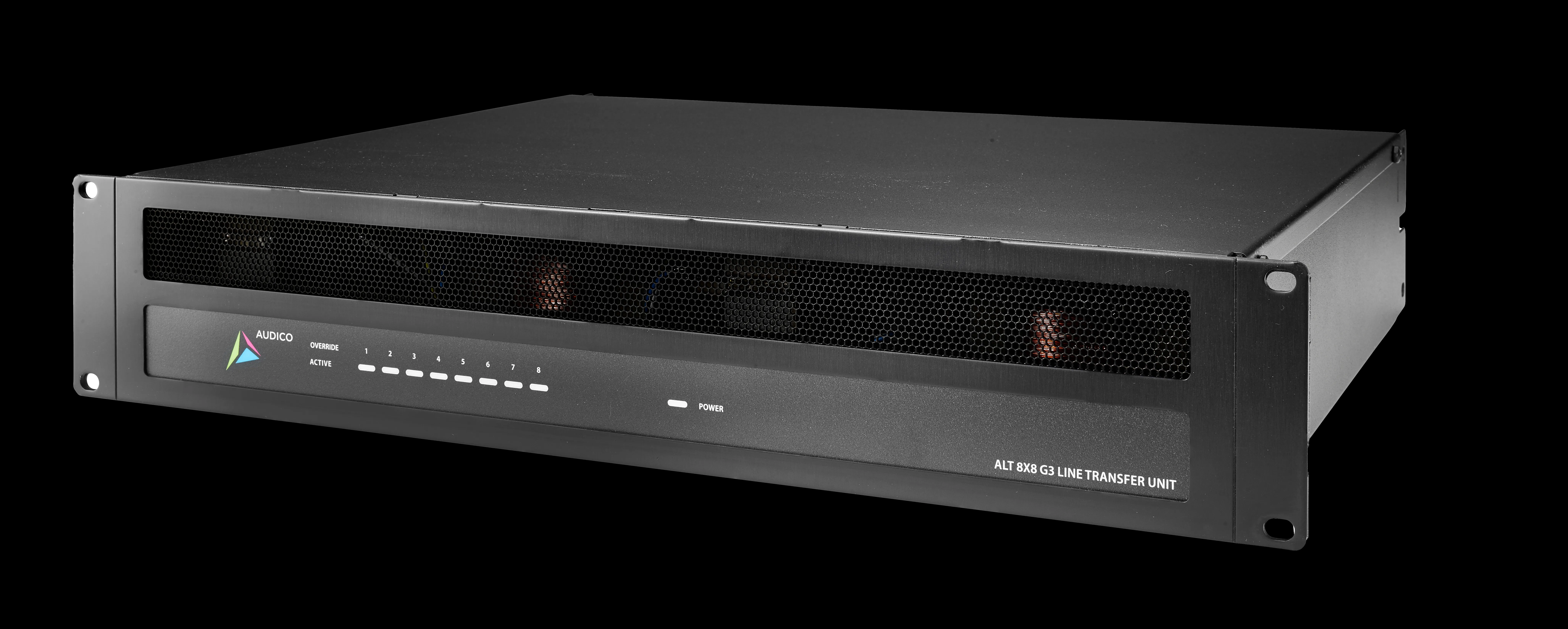

ALT 8X8 G3 LINE TRANSFER UNIT

High-Voltage Output Module for AVEC G3 Systems
