AAE 801B G4 Paging Console
Single-Zone Goose Neck Paging Console for AVEC G4

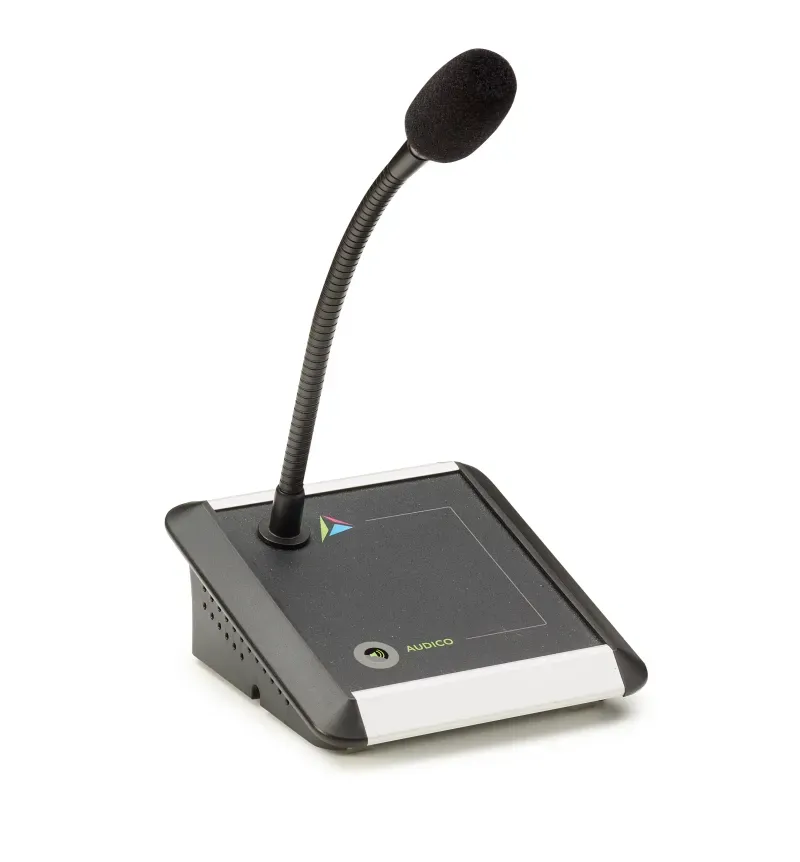

The AAE 801B is a single-zone paging console for the Audico AVEC G4 voice evacuation and public address system. With a single button and a 220 mm goose neck microphone, it allows anyone to make a live announcement to one pre-programmed zone — instantly and reliably. Its ideal application is any location where multiple different operators need to make announcements and change frequently — information desks, service counters and reception areas. No training is required: one button starts the announcement, one button ends it. Designed and manufactured in Finland.
Ready to specify AVEC G4 for your project?
Contact us
Industry use
Suited to any location within an AVEC G4 installation where a dedicated single-zone paging point is needed — information desks, hospital reception areas, retail service counters, transport information points and maritime vessel stations.
Simple by design.
One button. One zone. The AAE 801B has no zone selection, no menus and no unnecessary controls. PTT mode keeps the announcement active while the button is held. TOGGLE mode starts with one press and stops with another — practical for longer announcements where hands-free operation is needed. A speaker muting relay prevents acoustic feedback from nearby loudspeakers.
Made in Finland. Flexible installation.
Can be placed on a desk, flush-mounted into a countertop, or wall-mounted using the optional bracket accessory. Connects to the ADA 8x8 G4 via System Bus or Local Bus (CAT5/6/7), or via dry-contact control with no limit on the number of consoles. Designed and manufactured in Finland under ISO 9001 and ISO 14001 certified processes.
The AAE 801B connects to the AVEC G4 system via the Main Bus or Spare Bus — providing built-in redundancy. Up to 15 consoles can share one bus. Where a higher number of consoles is needed, dry-contact control can be used with no upper limit on device count.
The announcement zone, priority level, pre-announcement tone and other properties are configured in Aveclizer PC software and stored per device. A VOX function can be activated for TOGGLE mode, automatically ending the announcement after a set period of silence. The DIP switch on the back of the unit sets the device address and operating mode without the need for software access.
Typical Applications
- Information desks in public buildings, shopping centres and transport hubs
- Hospital and healthcare reception areas
- Retail service counters
- School and institution reception desks
- Port and ferry terminal information points
- Maritime vessels — passenger stations and service points
System capabilities at a glance
Main Features
- Single-zone paging to one freely programmable zone (up to 512 amplifier channels)
- 220 mm goose neck microphone — electret, cardioid pattern
- Single button with selectable PTT or TOGGLE operation
- 4 LED indicators for device and announcement status
- Speaker muting relay to prevent acoustic feedback
- Table-top, countertop flush-mount or wall-mount installation
- Connects via System Bus, Local Bus or dry-contact control
- Up to 15 consoles per bus — unlimited with dry-contact control
- VOX function — auto-ends TOGGLE announcement after silence
- Configurable via Aveclizer PC software
- Bus powered from ADA 8x8 G4 — no separate power supply needed
- Designed and manufactured in Finland
In the Box
- User manual
- 3 m CAT6 connection cable
- 3-part removable screw terminal for muting relay
- Microphone wind shield
Optional Accessories
- AAE 808 wall bracket pair — Audico code N12851
- TMT040, XLR4(M) muting wall box — N10481
- Connection cable between AAE console and TMT040 wall box — N10330
Weight
0.47 kg
Audico type
AAE 801B Audico AVEC Paging and Control Console
Audico code
N62299
EAN code
6430029191443 EAN
Microphone
Electret Microphone, cardioid pattern
Goose neck
220 mm
Frequency response -3dB
200-17 000 Hz (HPF) , 50-17 000 Hz
Power supply
24VDC audio, 12VDC input digital, bus powered. In the special case local power supply 12VDC/0, 5A
Connections:
RJ-45 Main Bus RJ-45 Spare Bus, 3-pole removable screw terminal max. Ø 0.75 mm²
Operating temperature
-15 ... 55⁰C
Humidity
20% ... 90% no condensation
Packaging
0.41 x 0.16 x 0.18 m
Package volume
0.0012 m3
Audico code
N62299
Weight
0.47 kg
Audico type
AAE 801B Audico AVEC Paging and Control Console
Audico code
N62299
EAN code
6430029191443 EAN
Microphone
Electret Microphone, cardioid pattern
Goose neck
220 mm
Frequency response -3dB
200-17 000 Hz (HPF) , 50-17 000 Hz
Power supply
24VDC audio, 12VDC input digital, bus powered. In the special case local power supply 12VDC/0, 5A
Connections:
RJ-45 Main Bus RJ-45 Spare Bus, 3-pole removable screw terminal max. Ø 0.75 mm²
Operating temperature
-15 ... 55⁰C
Humidity
20% ... 90% no condensation
Packaging
0.41 x 0.16 x 0.18 m
Package volume
0.0012 m3
Audico code
N62299
Weight
0.47 kg
Audico type
AAE 801B Audico AVEC Paging and Control Console
Audico code
N62299
EAN code
6430029191443 EAN
Microphone
Electret Microphone, cardioid pattern
Goose neck
220 mm
Frequency response -3dB
200-17 000 Hz (HPF) , 50-17 000 Hz
Power supply
24VDC audio, 12VDC input digital, bus powered. In the special case local power supply 12VDC/0, 5A
Connections:
RJ-45 Main Bus RJ-45 Spare Bus, 3-pole removable screw terminal max. Ø 0.75 mm²
Operating temperature
-15 ... 55⁰C
Humidity
20% ... 90% no condensation
Packaging
0.41 x 0.16 x 0.18 m
Package volume
0.0012 m3
Audico code
N62299
Weight
0.47 kg
Audico type
AAE 801B Audico AVEC Paging and Control Console
Audico code
N62299
EAN code
6430029191443 EAN
Microphone
Electret Microphone, cardioid pattern
Goose neck
220 mm
Frequency response -3dB
200-17 000 Hz (HPF) , 50-17 000 Hz
Power supply
24VDC audio, 12VDC input digital, bus powered. In the special case local power supply 12VDC/0, 5A
Connections:
RJ-45 Main Bus RJ-45 Spare Bus, 3-pole removable screw terminal max. Ø 0.75 mm²
Operating temperature
-15 ... 55⁰C
Humidity
20% ... 90% no condensation
Packaging
0.41 x 0.16 x 0.18 m
Package volume
0.0012 m3
Audico code
N62299
