The ADA 8x8 G4 is the central system unit of the Audico AVEC G4 voice evacuation, public address and background music platform. It provides centralised control and management for all connected components, from a single-zone retail installation to a fully redundant multi-site voice evacuation system across hundreds of zones. Available in three versions, Core X, Core I and Core II, the ADA 8x8 G4 scales to match the exact requirements of the installation, without oversizing or compromise. Designed and manufactured in Finland under ISO 9001 certified processes.

Ready to specify AVEC G4 for your project?

Contact us

Industry use

Ideal for any application requiring secure, multi-zone public address or EN 54 certified voice evacuation: schools, hospitals, shopping centres, transport infrastructure, industrial facilities and maritime vessels. Scales from 8 to 512 zones within a single system.

Three versions. One platform.

Core X for compact installations such as small retail and schools. Core I for mid-sized buildings including offices and healthcare. Core II for the most demanding projects such as shopping centres, airports and large passenger vessels. All three versions share the same architecture, software and product family.

Made in Finland. Certified for safety.

Designed and manufactured in Finland under ISO 9001 and ISO 14001 certified processes. EN 54-16 and EN 54-4 certified. EN 60945 compliant with DNV and Bureau Veritas type approval for maritime use. RoHS compliant.

The ADA 8x8 G4 runs on Linux and uses advanced DSP for all audio inputs and outputs, with per-channel delay for precise zone control. Its 32×32 digital matrix handles complex audio routing across up to 512 zones. An optional DANTE network audio interface (Brooklyn 3) provides 24×24 channels of IP-based audio distribution using standard Ethernet infrastructure.

‍

Power amplification uses Class D GaN technology, delivering 95% efficiency with minimal heat output — a significant improvement over conventional amplifier designs. Up to four DPA224 amplifier cards can be installed in a single Core unit, with each card providing 2×240W output.

‍

The built-in message player stores up to 128 pre-recorded WAV messages for automated announcements, emergency tones and evacuation instructions. Calendar and timer functions enable scheduled operations without external control systems. An open API allows integration with building management systems, fire alarm panels and third-party control platforms.

‍

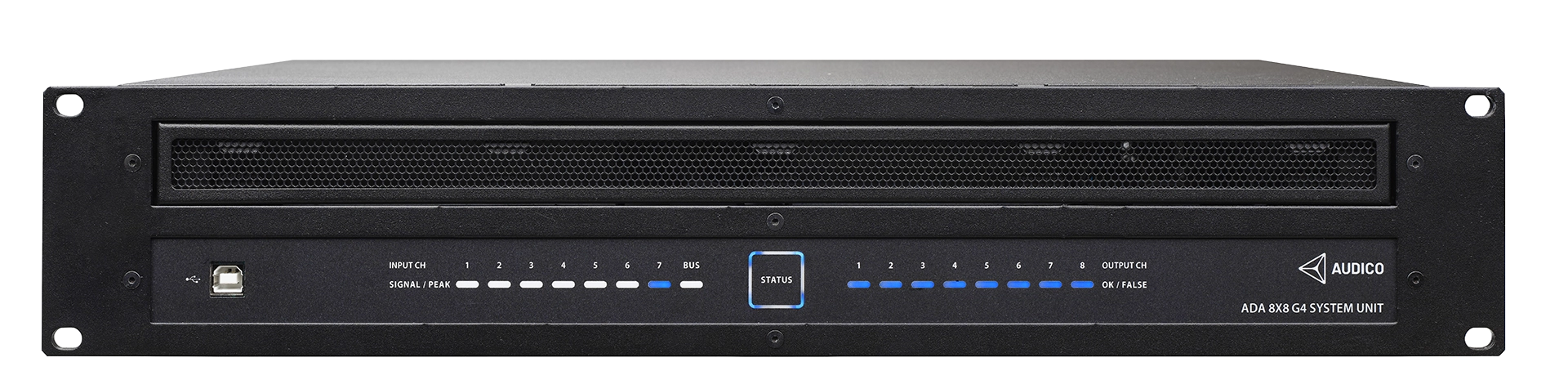

ADA 8x8 G4 System Unit

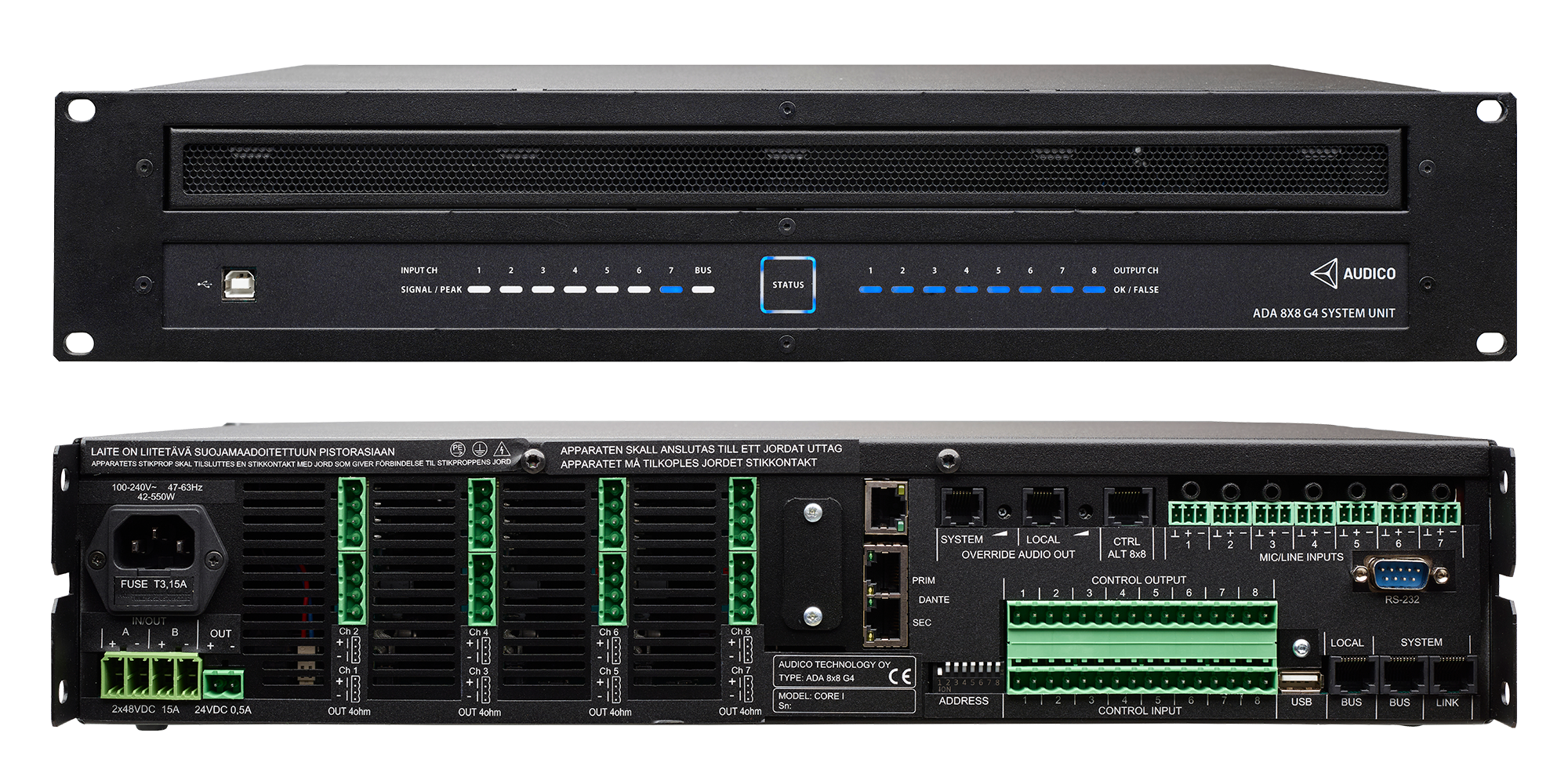

ADA 8x8 G4 System Unit

Core Versions

Core X: Compact installations

The entry-level configuration for straightforward PA requirements. Suited to small retail environments, schools and any site where simplicity and cost-efficiency are the priority. Delivers essential amplifier functionality with the full AVEC G4 feature set.

‍

Core I: Mid-sized buildings

Designed for offices, schools, community buildings and small healthcare facilities. Balances amplifier power and channel count to deliver reliable performance across multiple zones without unnecessary complexity.

‍

Core II: Large and demanding installations

Built for shopping centres, airports, transport terminals and large passenger and cruise vessels. Provides maximum amplifier power with up to 4 DPA224 amplifier cards per unit.

‍

System capabilities at a glance

ADA 8x8 G4 System Unit

Main Features

  • EN 54-16 and EN 54-4 certified voice evacuation system
  • Maritime type approval — DNV and Bureau Veritas
  • Three versions: Core X (8×60W), Core I (8×120W), Core II (8×240W) @ 4 Ω or 100V
  • Class D GaN amplifiers — 95% efficiency, minimal heat output
  • 32×32 digital matrix with DSP and per-channel delay
  • Optional DANTE network audio — 24×24 channels (Brooklyn 3) via standard Ethernet
  • Linux operating system — stable, open platform
  • Up to 64 units on one System Bus — up to 512 zones
  • Built-in message player — up to 128 WAV messages
  • Calendar and timer functions for automated operations
  • 7 balanced analogue audio inputs, mic/line
  • 48 VDC phantom power for microphones
  • 8 programmable control inputs (GPI) and outputs (GPO)
  • Open API — integrates with BMS, fire alarm and 3rd party systems
  • Aveclizer PC software — full system configuration and monitoring
  • Designed and manufactured in Finland

‍

Analogue inputs 1–7
Balanced mic/line, sensitivity −45 dBu … +6 dBu
Control & Interfaces
Analogue input impedance
20 kΩ (balanced)
Control & Interfaces
System Bus / Local Bus audio
+6 dBu (balanced)
Control & Interfaces
Digital message format (WAV)
16-bit, 16 / 32 / 44.1 kHz
Control & Interfaces
Phantom voltage
48 VDC for microphones
Control & Interfaces
Control inputs (GPI)
8 programmable
Control & Interfaces
Control outputs (GPO)
8 programmable
Control & Interfaces
LAN
TCP/IP Ethernet
Control & Interfaces
DANTE (optional)
Brooklyn 3, 24×24 ch Dante audio via Ethernet (primary & secondary ports)
Control & Interfaces
USB-A
Memory stick / 3rd party control
Control & Interfaces
RS-232
Service interface
Control & Interfaces
Open API
Yes — 3rd party system integration
Control & Interfaces
Configuration software
Aveclizer PC — password-level access control
Control & Interfaces
Amplifier channels
8 independent Class D channels (GaN technology, 95% efficiency)
Outputs
RMS output power — Core X
8 × 60 W @ 4 Ω or 100 V
Outputs
RMS output power — Core I
8 × 120 W @ 4 Ω or 100 V
Outputs
RMS output power — Core II
8 × 240 W @ 4 Ω or 100 V
Outputs
Dynamic output power — Core II
8 × 240 W max. @ 4 Ω
Outputs
Output for 70/100V lines (via ALT 8x8 G4)
120 W RMS max. per channel
Outputs
DSP matrix
32×32 channels with delay on all inputs and outputs
Outputs
System Bus connections
Up to 64 ADA 8x8 G4 units, up to 512 zones
Outputs
Built-in message player
Up to 128 messages (WAV)
Outputs
Frequency response −3 dB
20 Hz – 20 kHz
Outputs
S/N ratio
96 dBA
Outputs
THD+N @ 1W / 1 kHz
< 0.05%
Outputs
Mains voltage
100–240 VAC, 50/60 Hz
Power Supply & Consumption
Max. AC input voltage
345 VAC (1.5 × 230 V)
Power Supply & Consumption
Mains connector type
Class I
Power Supply & Consumption
Power consumption — Core I
42 W – 550 W
Power Supply & Consumption
Power consumption — Core II
45 W – 1100 W
Power Supply & Consumption
Power factor at full load
< 0.9 @ 230 VAC
Power Supply & Consumption
Main fuses 5×20 mm
T6.3A (Core II), T3.15A (Core I)
Power Supply & Consumption
DC backup input
2 × 48 VDC, 2 × 15 A max.
Power Supply & Consumption
24 VDC output
1 A — for ALT 8x8 G4 and accessories
Power Supply & Consumption
Dimensions (W × H × D)
485 × 86 × 375 mm (2U, 19")
Mechanical & Environmental
Weight (net)
7.7 kg
Mechanical & Environmental
Operating temperature
−15 … +55 °C
Mechanical & Environmental
Operating humidity
0 … 90% RH, non-condensing
Mechanical & Environmental
Standards
EN 54-16, EN 54-4, EN 60945, RoHS compliant
Mechanical & Environmental
Maritime approvals
DNV
Mechanical & Environmental
Manufactured in
Finland — LST Production Oy, Turku, ISO 9001 & ISO 14001
Mechanical & Environmental
