Modular paging and control consoles of the Avec family are used for making announcements, playing messages, give on-screen information on the equipment status, selecting sound sources and adjusting volume zone by zone. The versatile consoles have been certified and comply to the EN 60945 and EN 54-16 standards in voice evacuation system.

Ready to specify AVEC G4 for your project?

Contact us

Industry use

Designed for education, transport, retail, office complexes and marine environments.

Flexible system architecture

Connects directly to ADA 8x8 units via RS-485. Supports scalable, programmable zone-based paging and control.

Certified for compliance and safety

Compliant with AVEC G3 system requirements and EMC regulations.

User Interface Units for AVEC and AVEC G3 Systems

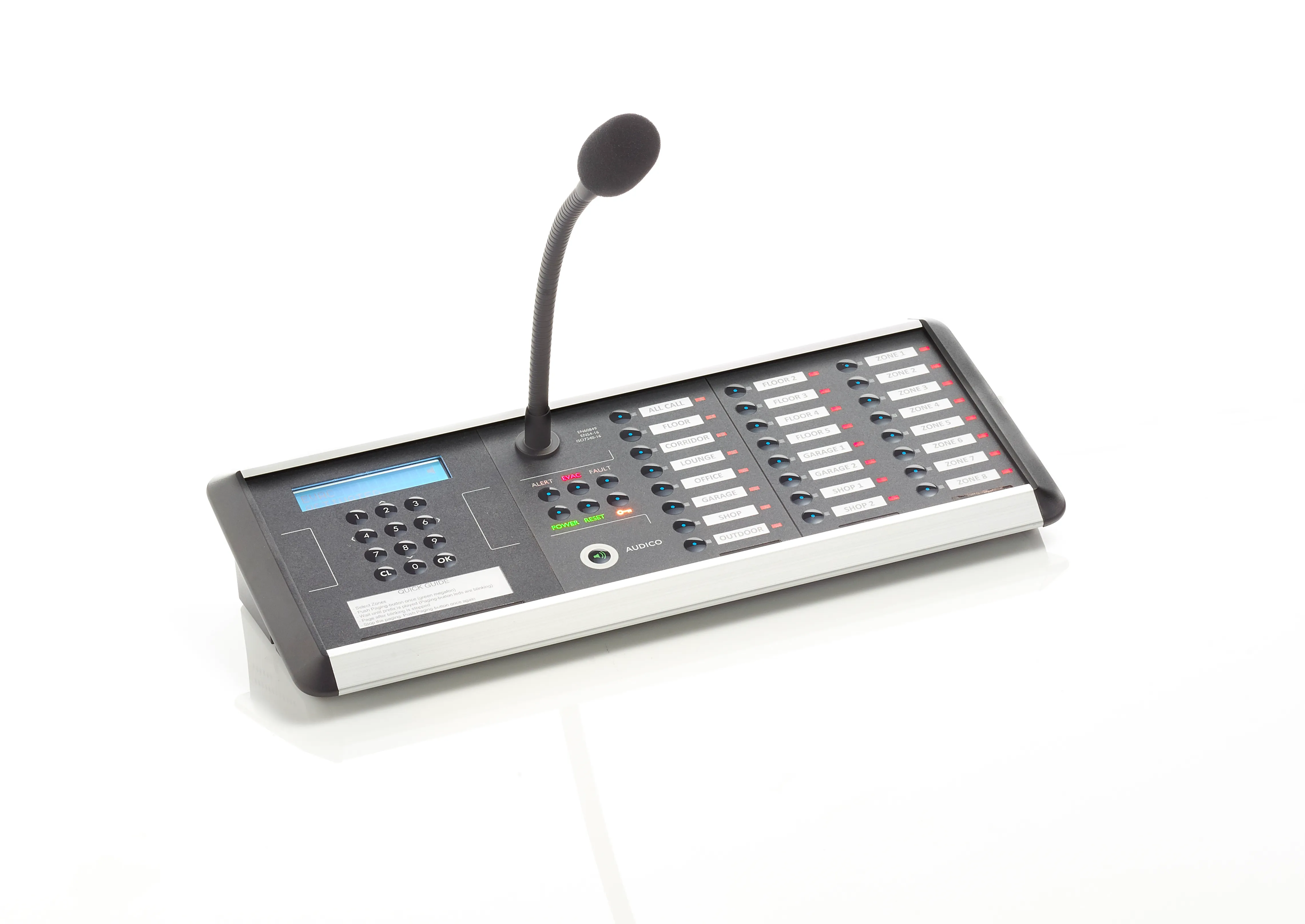

The AAE range of consoles are used to control diverse functions in the Audico Avec G3 sound system. The unit allows paging and playback of prerecorded messages in different zones within a building. The console with an LCD display (DC) can be used to activate program sources and adjust volumes in different zones. The error monitoring required by the EN-standards is shown with indicator lights.

‍

There are two user levels for the console; paging, activating information messages and choosing a source can be done by anyone, zones can be manually directed into alert or evacuation mode only by authorized personnel. The consoles are stylish and the user interface is logical and easy to use.

‍

‍

Model range:
  • AAE 808 / AAE 808F / AAE 808DC / AAE 808DCF: for 8 zones, with or without display, F-models include handheld microphone for fireman’s use.
  • AAE 824 / AAE 824F / AAE 824DC / AAE 824DCF: for 24 zones, with or without display.
  • AAE 840 / AAE 840F / AAE 840DC / AAE 840DCF: for 40 zones, with or without display.
  • Custom models available up to 120 zones (AAE 8120DCF).

‍

Typical applications

  • Information desks, transport hubs, commercial sites
  • Locations requiring both general and secure paging functions
  • Fireman’s control points with handheld microphone models

System capabilities at a glance

Main Features

  • Modular consoles with 8, 24, 40 or up to 120 zone capacity
  • LCD display option (DC models) for source selection and volume control
  • Indicator lights show equipment status and system errors
  • Two user levels: general paging and restricted alert/evacuation control

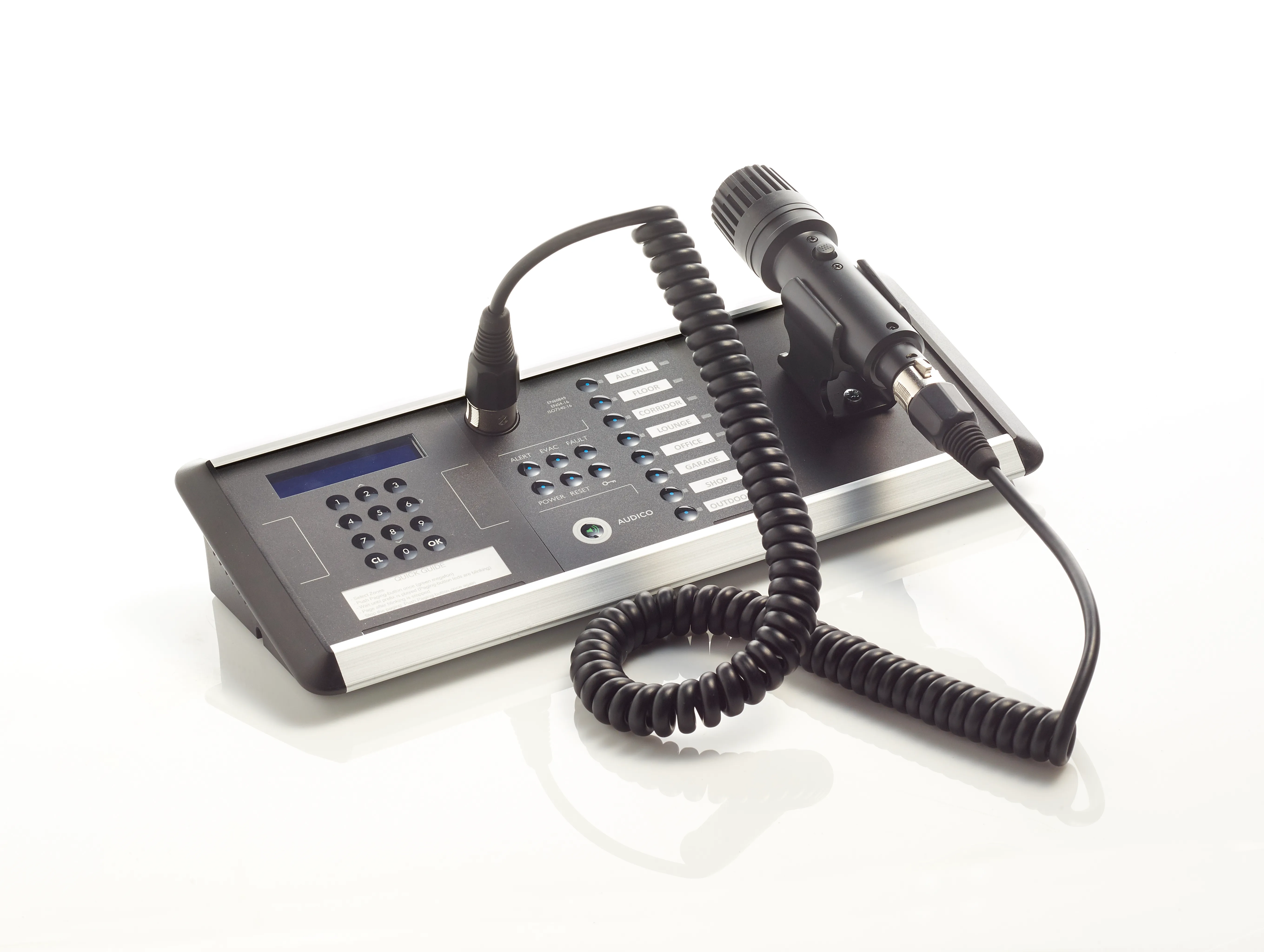

  • Handheld microphone models (F-series) for fireman’s use
  • Certified to EN 60945 and EN 54-16 standards
