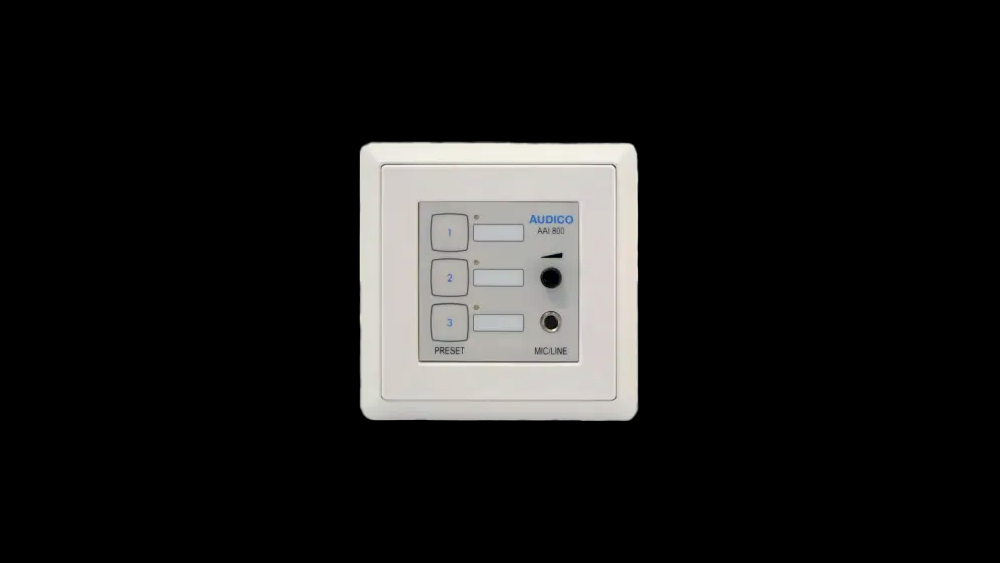

AAI 800 Audio Interface
External Audio Input for AVEC G3 Systems

The AAI 800 device is used for connecting and routing of a local sound source. With the three buttons on the device preset settings of the system can be chosen. The device also has a 3,5mm stereo plug with local volume control. The circuit board also has additional connectors for connecting XLR plug. The properties of the device are defined with the Aveclizer configuration software.
Ready to upgrade your PA or voice evacuation system?
Contact usIndustry use
Applicable in transport hubs, commercial venues, public buildings, and smart infrastructure.
Flexible system architecture
Enables integration of external sources into AVEC zones via ADA 8x8 system routing.
Certified for compliance and safety
Conforms to EMC requirements and is compatible with the AVEC G3 architecture.
External Audio Input for AVEC G3 Systems
The device is connected to the ADA 8x8 central unit with CAT 5/6/7 cable to the System or Local Bus. Each panel has its own address set with the DIP switches. The device is powered from the central unit.

Typical applications
- Background music feed into public areas
- Live announcements from external mixing desks
- Emergency audio signal injection from third-party systems
- Integration of AV or building management systems with AVEC
System capabilities at a glance

Main Features
- One balanced line input for external audio
- Screw terminal connection
- RS-485 connection to ADA 8x8 G3
- Audio and control data over one cable
- Compact housing for surface or cabinet mounting
- Powered from the system unit
3.5 mm stereo plug with local volume control
Additional connectors on circuit board for XLR plug
Configurable via Aveclizer software
DIP switches for address setting
Connects to ADA 8x8 via CAT 5/6/7 cable on System or Local Bus
Powered from ADA 8x8 central unit
Used for selecting program source and volume level
Audico code:
N12845
EAN code:
6430029190071
FI e number:
7931107
