AMI 100 Mobile Interface
Remote Paging Access for AVEC G3 Systems

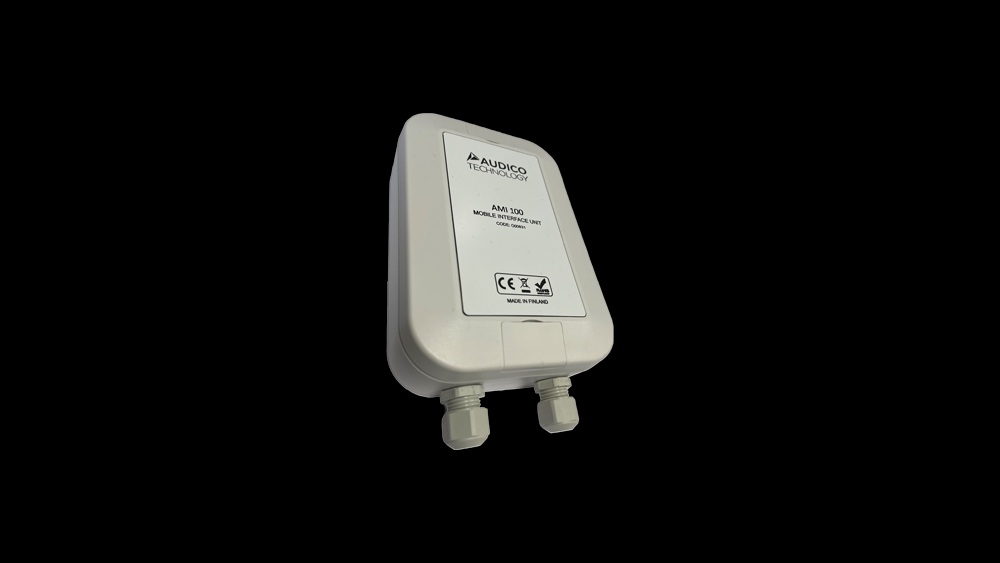

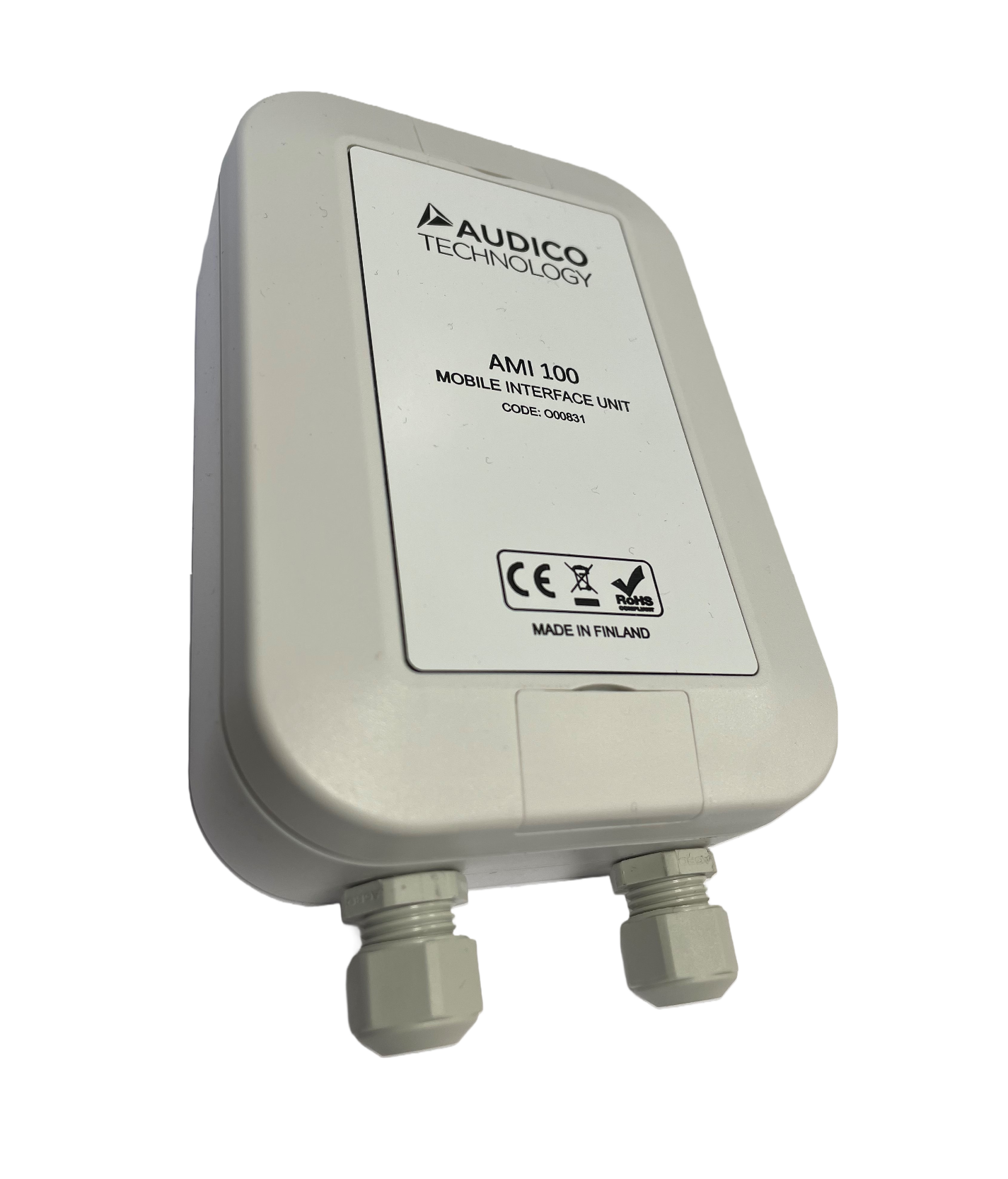

AMI 100 Mobile Interface Unit is a multipurpose GSM based wireless audio interface. It makes possible to realize audio path from the mobile telephone’s microphone to AMI 100 balanced analogue audio output. Additionally, a relay’s dry contact(NO) control activation is enabled when audio path is ready.
Ready to upgrade your PA or voice evacuation system?
Contact us
Industry use
Suitable for schools, industrial sites, public authorities, field units, and backup control centres.
Flexible system architecture
Allows off-site paging via phone connection through landline or GSM gateway. Integrates with AVEC zone routing.
Certified for compliance and safety
Complies with EMC requirements. Designed for controlled access and secure paging.
Remote Paging Access for AVEC G3 Systems
For safety reason Unit can be configured to accept certain telephone numbers only (up to 50 numbers). Configuration is done via SMS messages.
Unit should be placed to an environment, where GSM network is available. No external GSM antenna is needed. Unit’s enclosure IP-class is IP67, so inside or outside installation is possible.
Unit needs 12VDC power supply; it can be ranged from the external power supply or directly from PA/VA central.
Applications:
- Public Address System remote info announcement
- Voice Alarm System emergency announcement
- Info/ Alarm message activation to defined paging zone (stored messages)
Typical applications
- Emergency announcements from mobile phones
- Remote support for facility operations
- Paging access for on-call personnel
- Temporary or mobile control centres
System capabilities at a glance
Main Features
- Enables remote paging via telephone line
- Interfaces with landline or GSM gateway
- Caller authentication before activation
- Zone and message routing defined in system
- RS-485 connection to ADA 8x8 G3
- Compact housing for rack or panel mounting
Dimensions:
75x100x35 mm
Weight:
0.17 kg
IP rating:
IP67
Transformer balanced audio output:
0dB / 600 ohm
Power supply:
External 12 VDC (0,5A)
Ambient temperature:
-30…+75 °C
Dry contact output:
NO max. 1A, activated when connection is ready
Automatic disconnection configurable time:
10…400 min
Audico code:
O00831
Monitors external amplifiers:
max. 8 pcs/unit
Dimensions:
75x100x35 mm
Weight:
0.17 kg
IP rating:
IP67
Transformer balanced audio output:
0dB / 600 ohm
Power supply:
External 12 VDC (0,5A)
Ambient temperature:
-30…+75 °C
Dry contact output:
NO max. 1A, activated when connection is ready
Automatic disconnection configurable time:
10…400 min
Audico code:
O00831
Monitors external amplifiers:
max. 8 pcs/unit
